COMPLETE BLADDER ASSEMBLY

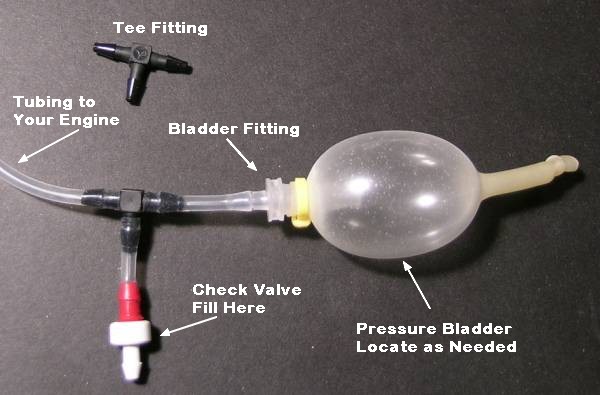

This is the layout of a generic pressure bladder system using our products.

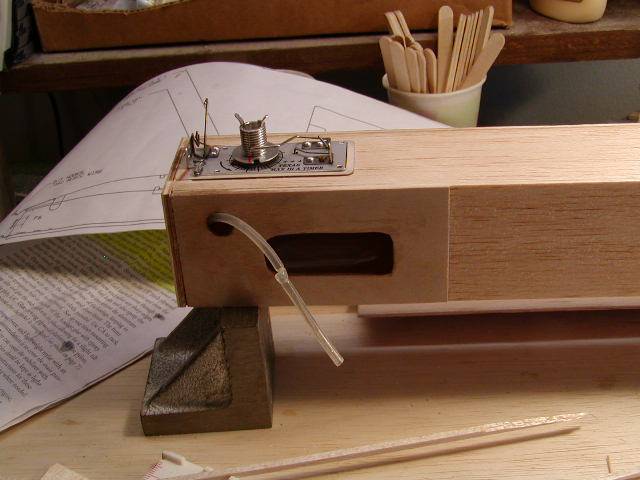

This shows an opening in the fuselage to monitor the amount of fuel in the bladder inside.
(Gene Christensen photo)

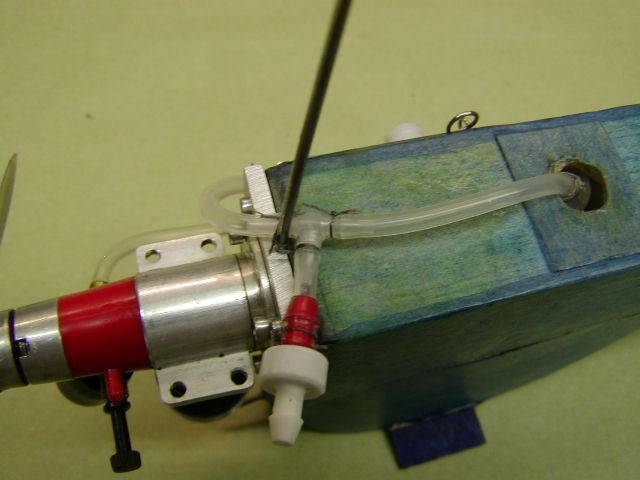

Here the check valve is mounted close to the bladder. We would suggest it be located farther away from dirt and dust.
(Gene Christensen photo)

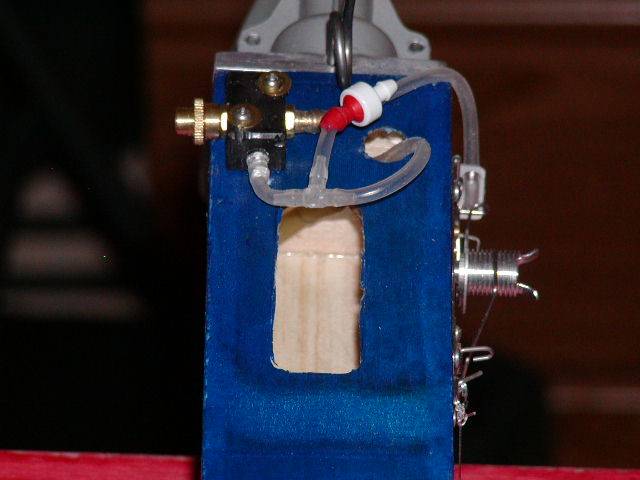

This is Veco powered Lucky Lindy A size ship with the Tee, Check Valve, and Bladder inside the fuselage. The other item is a remote needle valve made by Perry.
(Gene Christensen photo)
