ESC AND PROGRAMMING CARD

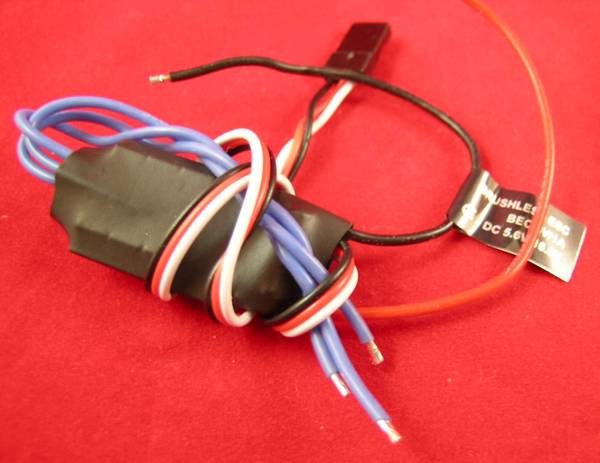

Wow, the red background is something else! This is pretty typical of all ESCs. The three
blue wires are the ones that go to the motor. The three wire cable with the connector plugs
into our timer board. The red and black wires go to the LiPo battery. You have options
for us to solder appropriate connectors to the motor and battery wires.
This is our Program Card. These are used with a number of Chinese ESCs.
If you have one that looks exactly like this (except for color), it will likely work with our ESC.
