THIN CIRCUIT BOARD OPTION

This is the circuit board using special right angle pin connectors. It is very useful where you only have limited depth to for installation. Because the pins and therefore the connectors and wires will project out from the sides of the board, it will take up more lengthwise space. You can rotate the board to any other position such as vertical if you wish, or you can install the board above or below the timer. There is a lot of flexibility in how you mount it.

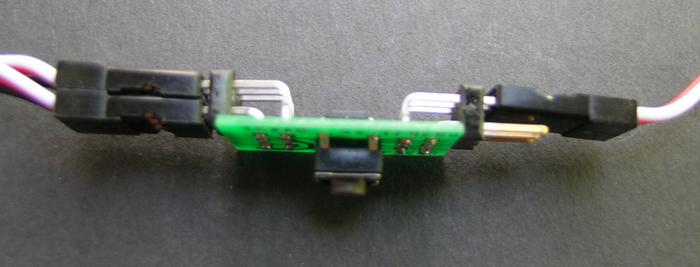

SIDE VIEW TO SEE THICKNESS

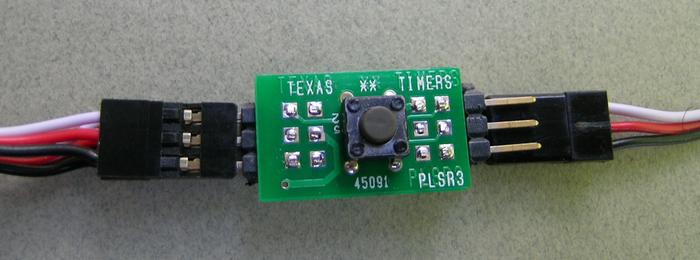

FRONT VIEW

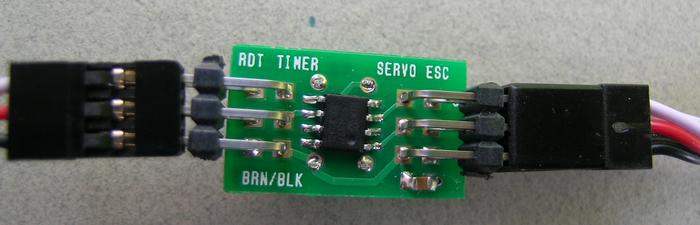

BACK VIEW
